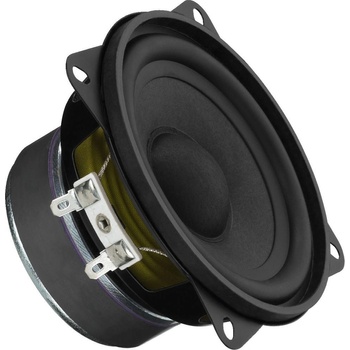

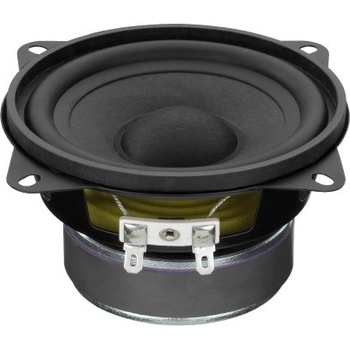

Monacor SPM-100/8

Kompaktný hi-fi stredobasový reproduktor, 25 W, 8 Ω

Vynikajúci náhradný reproduktor rovnakej kvality ako od originálneho výrobcu zariadenia Papierový kužeľ s nízkou rezonanciou Gumený rám s dlhou životnosťou Long-term stable rubber surround Also very well-suited for use as a full range speaker

• Impedance (Z): 8 Ω
• Transmission technology: cable
• Frequency range: f3-18,000 Hz
• Resonant frequency (fs): 75 Hz
• Power rating (RMS): 25 W
• Peak music power output (MAX): 50 W
• SPL: 86 dB/W/m
• Suspension compl. (Cms): 0.8 mm/N
• Moving mass (Mms): 4.4 g
• Mech. Q factor (Qms): 1.96
• Electr. Q factor (Qes): 1.01
• Total Q factor (Qts): 0.67
• Equivalent volume (Vas): 4 l
• DC resistance (Re): 7.2 Ω
• Force factor (BxL): 4.10 Tm
• Voice coil induct. (Le): 0.4 mH
• Voice coil diameter: Ø 20.4 mm
• Voice coil former: aluminium
• Linear excursion (XMAX): ± 1 mm
• Eff. cone area (Sd): 57 cm2
• Magnet weight: 220 g
• Magnet diameter: Ø 70 mm
• Mounting cutout: Ø 94 mm
• Mounting depth: 52.5 mm
• Mounting hole diameter: Ø 116 mm
• Dimensions: Ø 102 mm x 58 mm
• Outside diameter: Ø 102 mm
• Width: Ø 102 mm
• Height: Ø 102 mm
• Depth: 58 mm
• Colour: black
• Admiss. ambient temp.: 0-40 °C
• Weight: 0.538 kg
• Packing unit: 1
• Type of speaker: 4"
• Packaging dimensions (W x H x L): 0.105 x 0.065 x 0.105 m
• Gross weight: 0.57 kg
• Net weight: 0.538 kg
