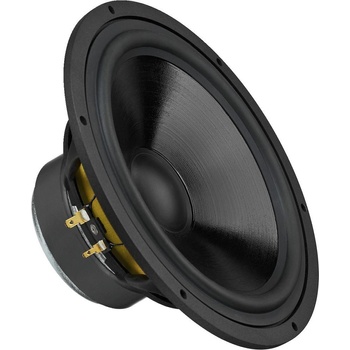

Monacor SPH-220HQ

Kvalitný hi-fi basový reproduktor, 100 W, 8 Ω 200 mm (8") basový reproduktor Ďalší vývoj klasického reproduktora SPH-212 Odliaty kôš Zadne vetraný centrovací pavúk a vyvŕtané pólové jadro pre minimálne mechanické straty Vysoko kvalitný natieraný papierový kužeľ s nízkou rezonanciou Nízko-stratový gumový rám Široký a lineárny rozsah vyžarovania Ideálne vhodný pre 3-cestné systémy a vhodný aj pre tradičné 2-cestné systémy v rozsahu aplikácií do 2 000 Hz a viac

HOBBY HiFi 04/2013 “Excellent sound, powerful bass reproduction and good level stability. It features an outstanding frequency response with perfect linearity. The SPH-220HQ allows for an exceptionally efficient radiation and even the use of a first-order crossover network for an ideal sound.”

• Impedance (Z): 8 Ω
• Transmission technology: cable
• Frequency range: f3-4,000 Hz
• Resonant frequency (fs): 30 Hz
• Power rating (RMS): 100 W
• Peak music power output (MAX): 180 W
• SPL: 90 dB/W/m
• Suspension compl. (Cms): 1.06 mm/N
• Moving mass (Mms): 24.7 g
• Mech. Q factor (Qms): 3.06
• Electr. Q factor (Qes): 0.46
• Total Q factor (Qts): 0.40
• Equivalent volume (Vas): 80 l
• DC resistance (Re): 6.1 Ω
• Force factor (BxL): 7.63 Tm
• Voice coil induct. (Le): 0.9 mH
• Voice coil diameter: Ø 37 mm
• Voice coil former: aluminium
• Linear excursion (XMAX): ± 5.5 mm
• Eff. cone area (Sd): 232 cm2
• Magnet weight: 550 g
• Magnet diameter: Ø 100 mm

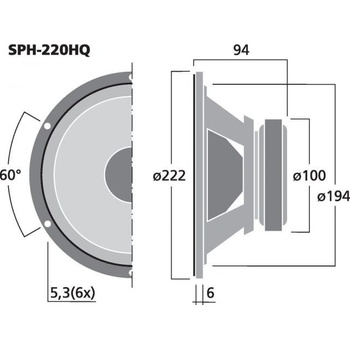

• Mounting cutout: Ø 194 mm
• Mounting depth: 88 mm
• Mounting hole diameter: Ø 212 mm
• Dimensions: Ø 222 mm x 94 mm
• Outside diameter: Ø 222 mm
• Width: Ø 222 mm
• Height: Ø 222 mm
• Depth: 94 mm
• Colour: black
• Admiss. ambient temp.: 0-40 °C
• Weight: 1.83 kg
• Packing unit: 1
• Type of speaker: 8"
• Packaging dimensions (W x H x L): 0.25 x 0.18 x 0.25 m
• Gross weight: 2.25 kg
• Net weight: 1.834 kg
