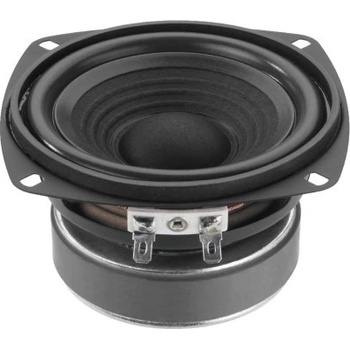

Monacor SP-60/4

Hi-fi stredobasové reproduktory, 30 W, 8 Ω (/8) a 4 Ω (/4)

Vyvŕtané pólové jadro Dobrá linearita frekvenčnej odozvy Pre malé reproduktorové systémy v rozsahu hi-fi

• Impedance (Z): 4 Ω
• Transmission technology: cable
• Frequency range: f3-8,000 Hz
• Resonant frequency (fs): 65 Hz
• Power rating (RMS): 30 W
• Peak music power output (MAX): 60 W
• SPL: 90 dB/W/m
• Suspension compl. (Cms): 0.8 mm/N
• Moving mass (Mms): 4 g
• Mech. Q factor (Qms): 2.10
• Electr. Q factor (Qes): 0.64
• Total Q factor (Qts): 0.49
• Equivalent volume (Vas): 6 l
• DC resistance (Re): 3.3 Ω
• Force factor (BxL): 2.90 Tm
• Voice coil induct. (Le): 0.2 mH
• Voice coil diameter: Ø 25.5 mm
• Voice coil former: aluminium
• Linear excursion (XMAX): ± 2 mm
• Eff. cone area (Sd): 55 cm2
• Magnet weight: 280 g
• Magnet diameter: Ø 80 mm
• Mounting cutout: Ø 96 mm
• Mounting depth: 60 mm
• Dimensions: 105 x 105 x 60 mm
• Width: 105 mm
• Height: 105 mm
• Depth: 60 mm
• Colour: black
• Admiss. ambient temp.: 0-40 °C
• Weight: 0.654 kg
• Packing unit: 1
• Type of speaker: 4"
• Packaging dimensions (W x H x L): 0.11 x 0.065 x 0.115 m
• Gross weight: 0.685 kg
• Net weight: 0.654 kg
