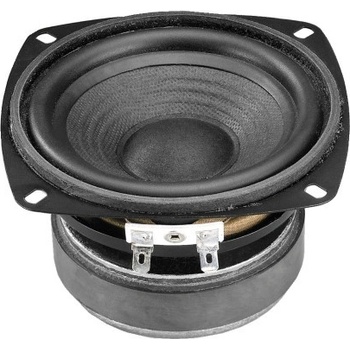

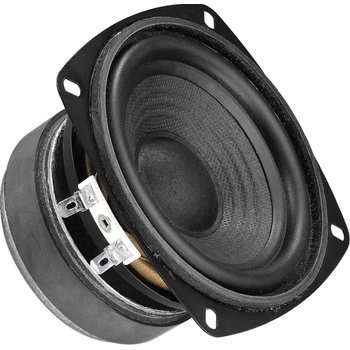

Monacor SP-100/8

Hi-fi stredobasový reproduktor, 30 W, 8 Ω

Robustný papierový kužeľ Vysoko kvalitná hliníková cievka Vyvŕtané pólové jadro Gumový rám Vynikajúca radiácia a prechodná odozva

• Impedance (Z): 8 Ω
• Transmission technology: cable
• Frequency range: f3-7,000 Hz
• Resonant frequency (fs): 61 Hz
• Power rating (RMS): 30 W
• Peak music power output (MAX): 60 W
• SPL: 88 dB/W/m
• Suspension compl. (Cms): 1.23 mm/N
• Moving mass (Mms): 5.5 g
• Mech. Q factor (Qms): 2.28
• Electr. Q factor (Qes): 0.44
• Total Q factor (Qts): 0.37
• Equivalent volume (Vas): 4.7 l
• DC resistance (Re): 6.5 Ω
• Force factor (BxL): 5.50 Tm
• Voice coil induct. (Le): 0.4 mH
• Voice coil diameter: Ø 25 mm
• Voice coil former: aluminium
• Linear excursion (XMAX): ± 2.5 mm
• Eff. cone area (Sd): 52 cm2
• Magnet weight: 280 g
• Magnet diameter: Ø 80 mm
• Mounting cutout: Ø 103 mm
• Mounting depth: 62.2 mm
• Mounting hole diameter: Ø 114.5 mm
• Hole spacing X-axis: 81 mm
• Hole spacing Y-axis: 81 mm
• Dimensions: 106 x 106 x 63 mm
• Outside diameter: Ø 127 mm
• Width: 106 mm
• Height: 106 mm
• Depth: 63 mm
• Colour: black
• Admiss. ambient temp.: 0-40 °C
• Weight: 0.79 kg
• Packing unit: 1
• Type of speaker: 4"
• Packaging dimensions (W x H x L): 0.115 x 0.065 x 0.115 m
• Gross weight: 0.835 kg
• Net weight: 0.795 kg
